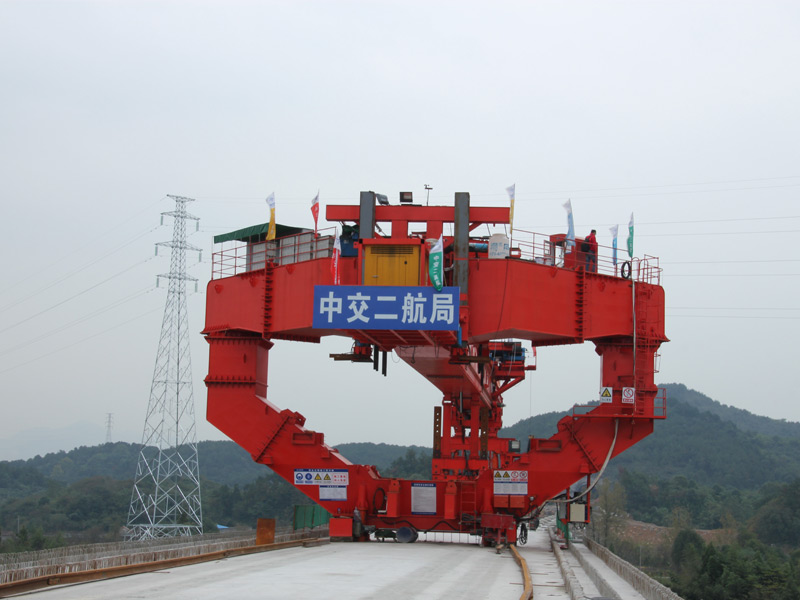

High speed railway beam launcher

Application range of high speed railway beam launcher

High speed railway beam launcher is used to install precast box girder. With full span installation method, the box type single girder beam launcher greatly improves the construction speed and erection precision.

Main features and advantages of high speed railway beam launcher

After researching and analyzing current highway bridge construction machines at home and abroad, combining with our successful experience, we develop and produce the new beam launcher according to practical situation. The main features are following:
● First-made honeycomb girder in China with light self weight, heavy load and strong wind resistance etc.
● The beam launcher conforms to the features of construction of present bridge which structure is innovative and reasonable.
● The main girder and main connecting structures adopt the mature pin connecting mechanism, it is very firm and reliable, and the assembly and disassembly are rapid and convenient.
● It doesn’t need to pave the longitudinal rails. It not only can reduce the stress of bridge, but also can save the cost of construction. It has a wide adaptability for the box girder.
● In order to make the beam launcher can adapt the longitudinal slope and transverse slope, the machine adopts legs which can move forward by it. And the force which the bridge bearing load should be reasonable and safe;
● Front and middle legs can be adjusted randomly and core plate with adjustable angle which can adapt the erection of curved bridge and Slope Bridge. According to angle of Slope Bridge, the user can adjust the front and middle legs when Slope Bridge is erected. Therefore, it can be used for 45°and less than 45° any angle slope bridge.
● Transverse trolley is added to the lifting trolley, the whole machine traverses with boundary beam which resolve the problem of installation of boundary beam.

Main technical parameters of high speed railway beam launcher

Product Model
HZQT500 HZQT900
Rated lifting capacity 500t 900t
Max dimension for installed girder 30m×10.6m×1.8m 32m、24m double lines equal span and shift span box girder
Girder lifting method 4-points lifting, 3-points balancing 4-points lifting, 3-points balancing
Beam launcher moving speed 0-3m/min 0-3m/min
Beam launching moving way walking by itself walking by itself
Lifting trolley longitudinal moving speed 0-3m/min(heavy load),0-6m/min( empty load) 0-3m/min(heavy load),0-5m/min( empty load)
Lifting trolley lifting speed 0-0.5m/min(heavy load),0-1m/min( empty load) 0-0.5m/min(heavy load),0-1m/min( empty load)
Max lifting height of lifting trolley 6m 7m
Girder lateral fine adjustment distance ±200mm ±215mm
Girder fine adjustment speed 0-1m/min 0-1m/min
Min curved radius 1500m Rmin≥2500m
Applicable gradient longitudinal gradient 30%, lateral gradient 40% longitudinal gradient 20‰, lateral gradient 4%
Power 200kw 300kw
Control mode mechanic-electric-hydraulic integration system mechanic-electric-hydraulic integration system
